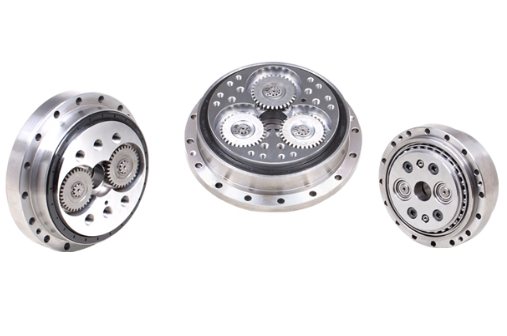

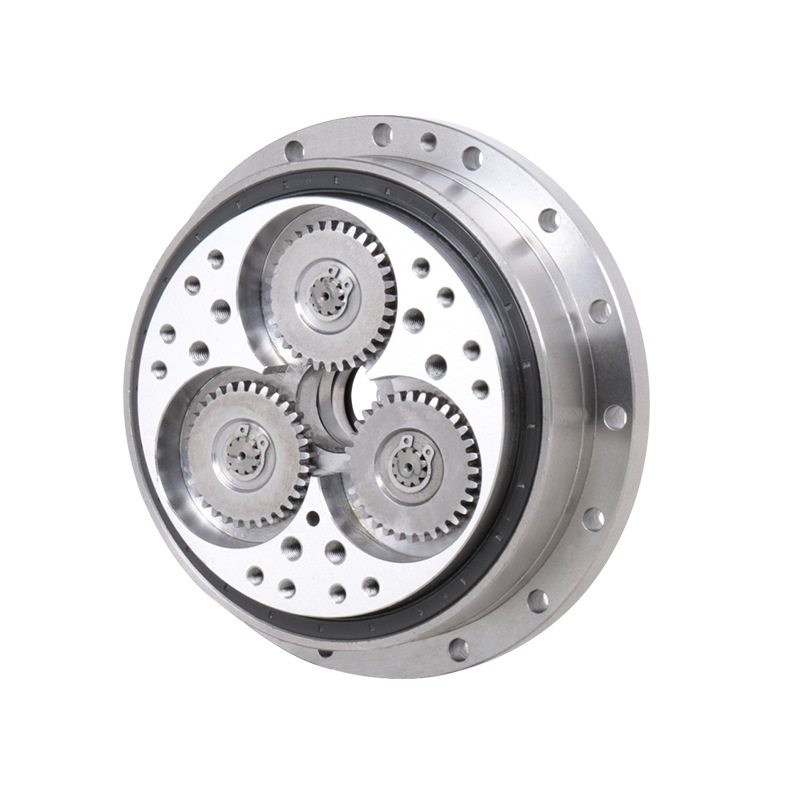

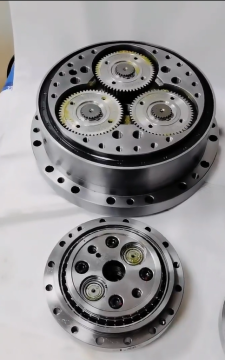

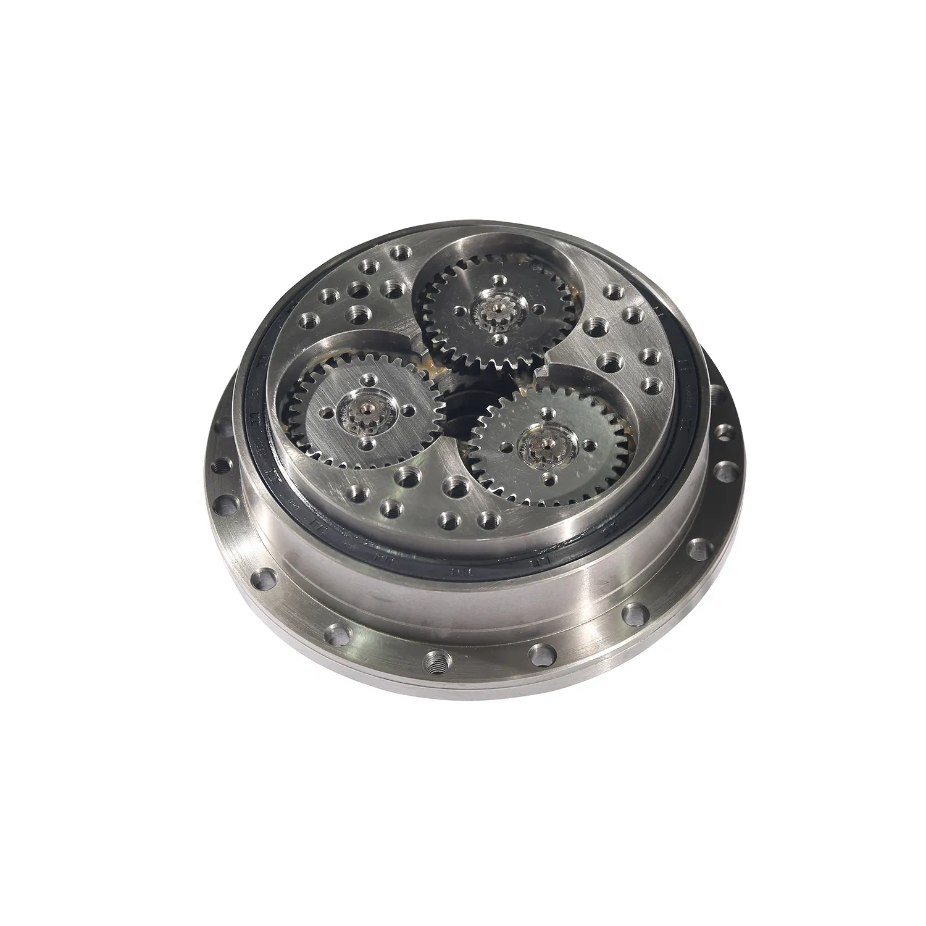

RV Cycloidal Gearbox
RV Cycloidal Reducer
The Precision RV Cycloidal Gear Reducer is a high-performance, compact transmission unit designed for high-precision motion control applications. It features cycloidal gearing technology, providing high torque density, near-zero backlash, and smooth power transmission. Widely used in industrial robots, CNC machinery, automation systems, medical equipment, and precision manufacturing, the RV series is known for its durability, accuracy, and reliability under heavy load and high-speed conditions.
RV Cycloidal Reducer
Product Features
- High Precision & Low Backlash – Ensures accurate positioning and repeatable motion
- Compact & High Torque Density – Delivers high torque in a small footprint
- Durable Cycloidal Gears – Long service life under heavy-duty conditions
- Smooth & Quiet Operation – Low vibration and minimal noise
- Modular Design – Flexible mounting options and multi-stage configurations available
- Wide Application Range – Ideal for robots, CNC, automation, and precision machinery
Technical Parameters
Parameter | Description |
|---|---|
Model | RV-40 / RV-50 / RV-63 / RV-80 / RV-100 / RV-120 |
Reduction Ratio | 5:1 ~ 100:1 (multi-stage up to 1000:1) |
Rated Torque | Depends on model, 10–5000 Nm |
Peak Torque | Maximum torque rating depends on model |
Input Speed | Up to 3000 rpm (depending on model) |
Backlash | ≤ 1 arcmin (high-precision option available) |
Shaft Type | Hollow shaft / Solid shaft |
Mounting Type | Flange-mounted / Foot-mounted / Multi-position |
Housing Material | High-strength aluminum or cast iron |
Lubrication | Oil or grease lubrication |
