R Series

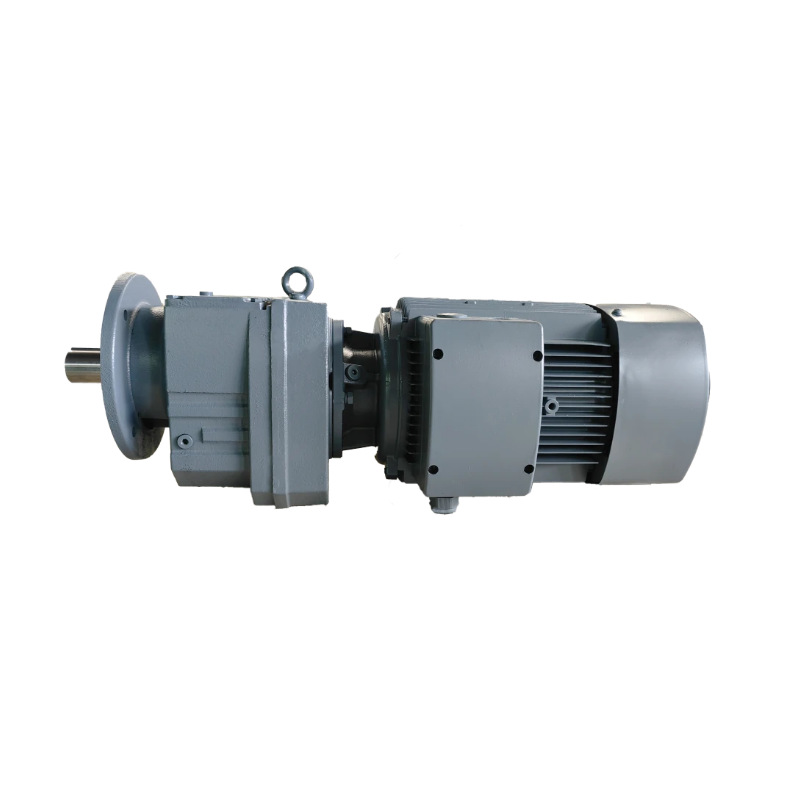

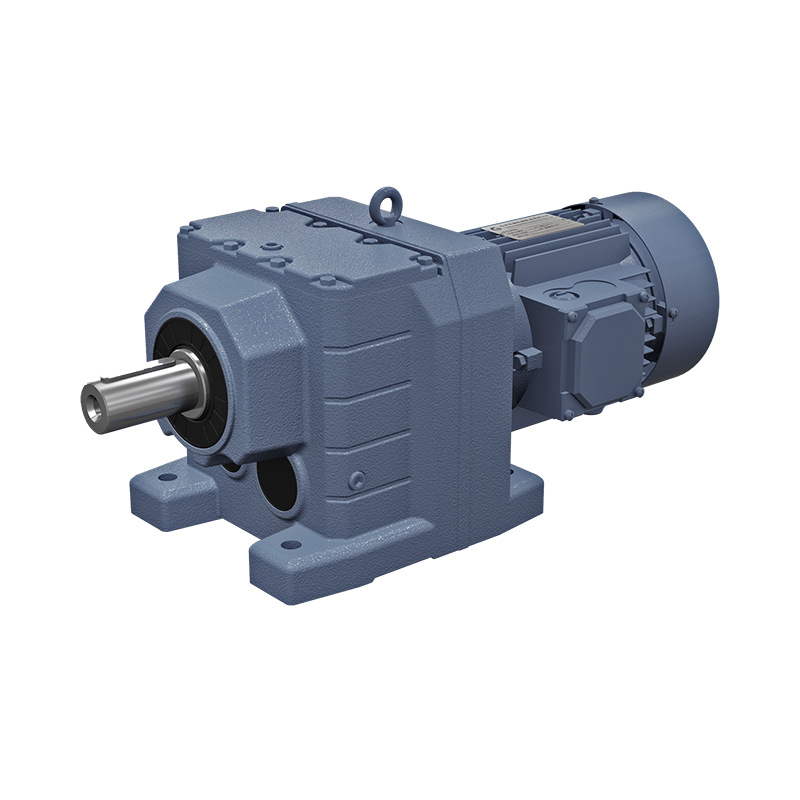

R Series Helical Gear Reducer
The R Series Helical Gear Reducer is a high-performance speed reducer designed for reliable and efficient power transmission. Featuring helical gear stages, it provides smooth operation, low noise, and high torque output in a compact and robust design. It is widely used in conveyors, automation systems, packaging machinery, metallurgy, and general industrial equipment.
R Series Helical Gear Reducer
Product Features
- High-strength cast iron housing with compact structure and excellent rigidity
- Helical gear transmission for high efficiency and quiet operation
- Gears made of alloy steel, carburized, quenched, and precision-ground for long service life
- High load-bearing capacity, suitable for continuous and heavy-duty applications
- Multiple mounting and shaft configurations for flexible integration

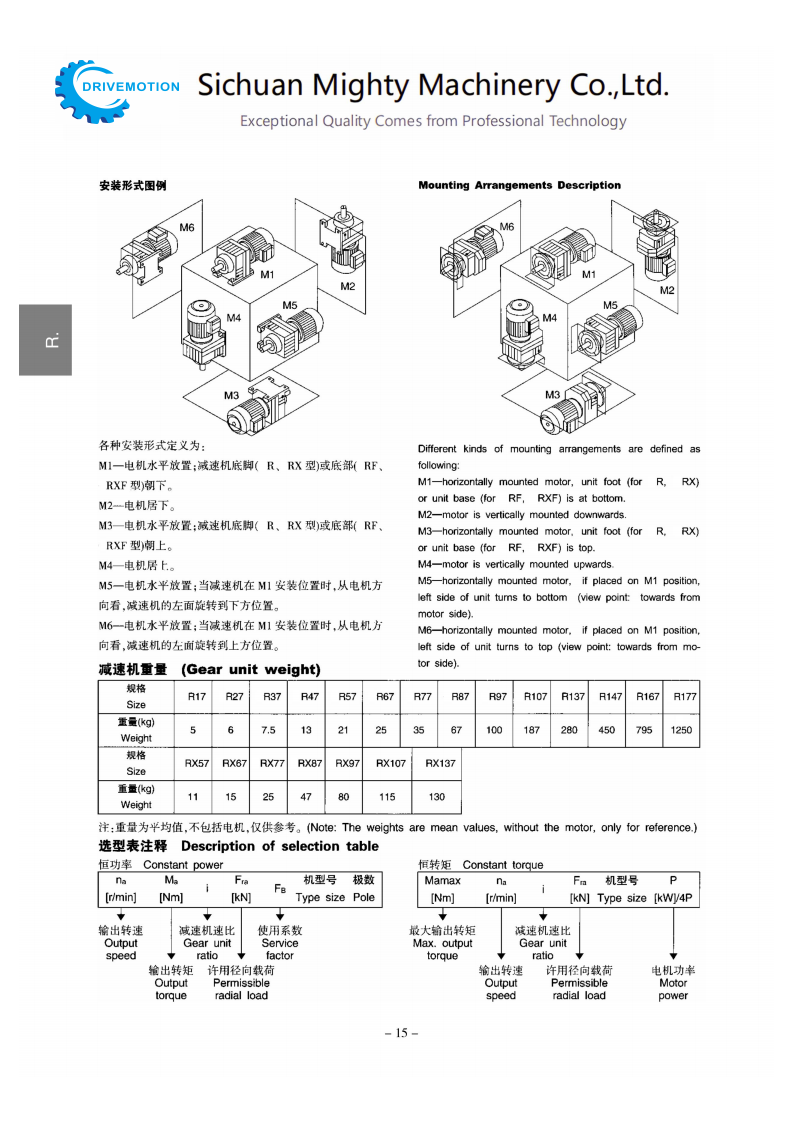

Mounting Types
- Foot-mounted
- Flange-mounted
- Hollow shaft or solid shaft
- Left-hand or right-hand output available

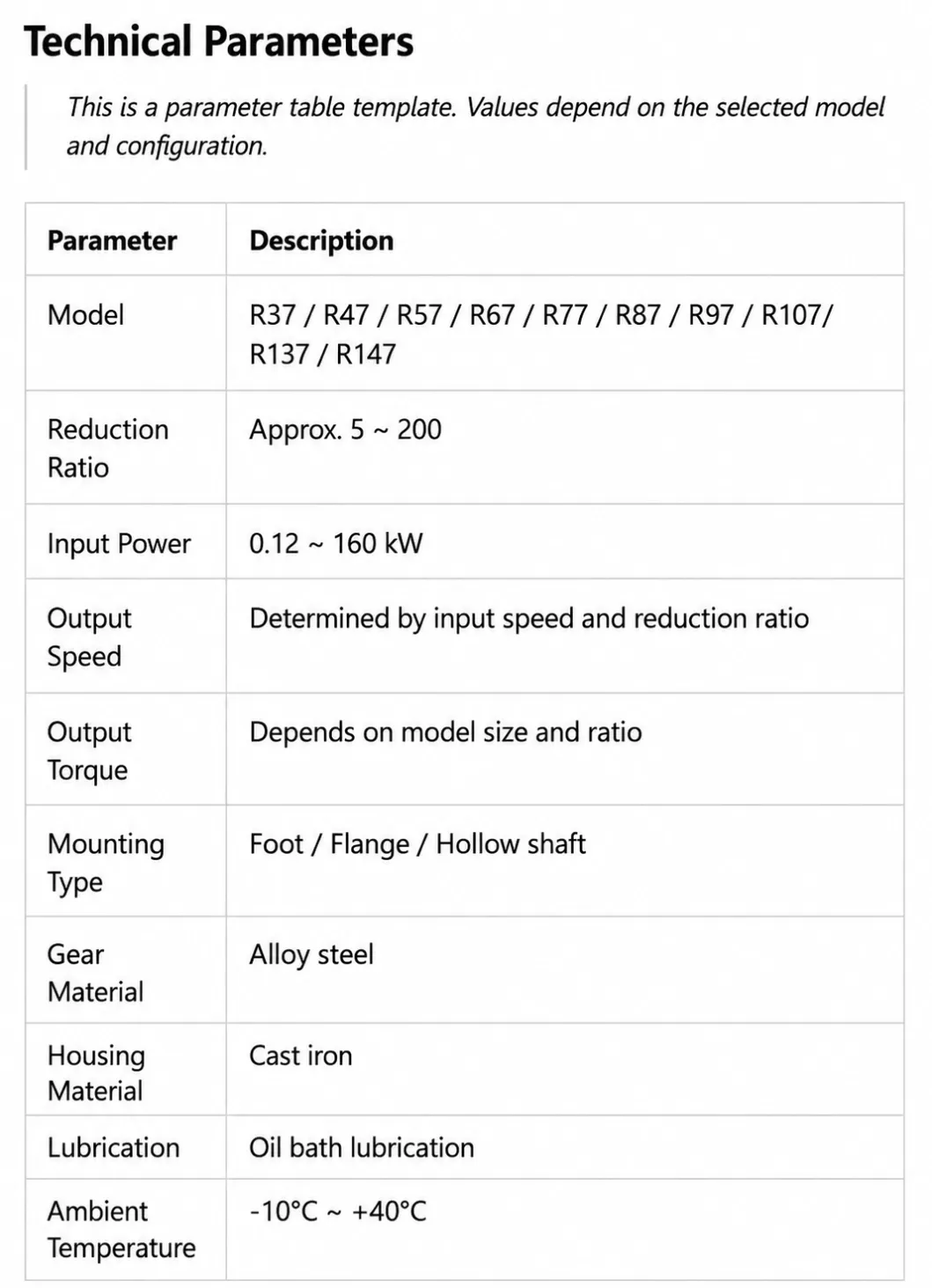

Technical Parameters
This is a parameter table template. Values depend on the selected model and configuration.
Parameter | Description |
|---|---|
Model | R37 / R47 / R57 / R67 / R77 / R87 / R97 / R107/ R137 / R147 |
Reduction Ratio | Approx. 5 ~ 200 |
Input Power | 0.12 ~ 160 kW |
Output Speed | Determined by input speed and reduction ratio |
Output Torque | Depends on model size and ratio |
Mounting Type | Foot / Flange / Hollow shaft |
Gear Material | Alloy steel |
Housing Material | Cast iron |
Lubrication | Oil bath lubrication |
Ambient Temperature | -10°C ~ +40°C |
Selection Guide
To select the appropriate model, please provide:
- Motor power (kW)
- Required reduction ratio or output speed
- Output torque or load condition
- Mounting type and shaft configuration
- Working condition (continuous or shock load)
Applications
- Conveyor and material handling systems
- Automation and production lines
- Packaging and food processing machinery
- Metallurgy and general industrial equipment
