High-precision planetary gearbox with compact design and robust construction. Offers high torque, low noise, and long service life. Ideal for automation, robotics, and precision machinery.

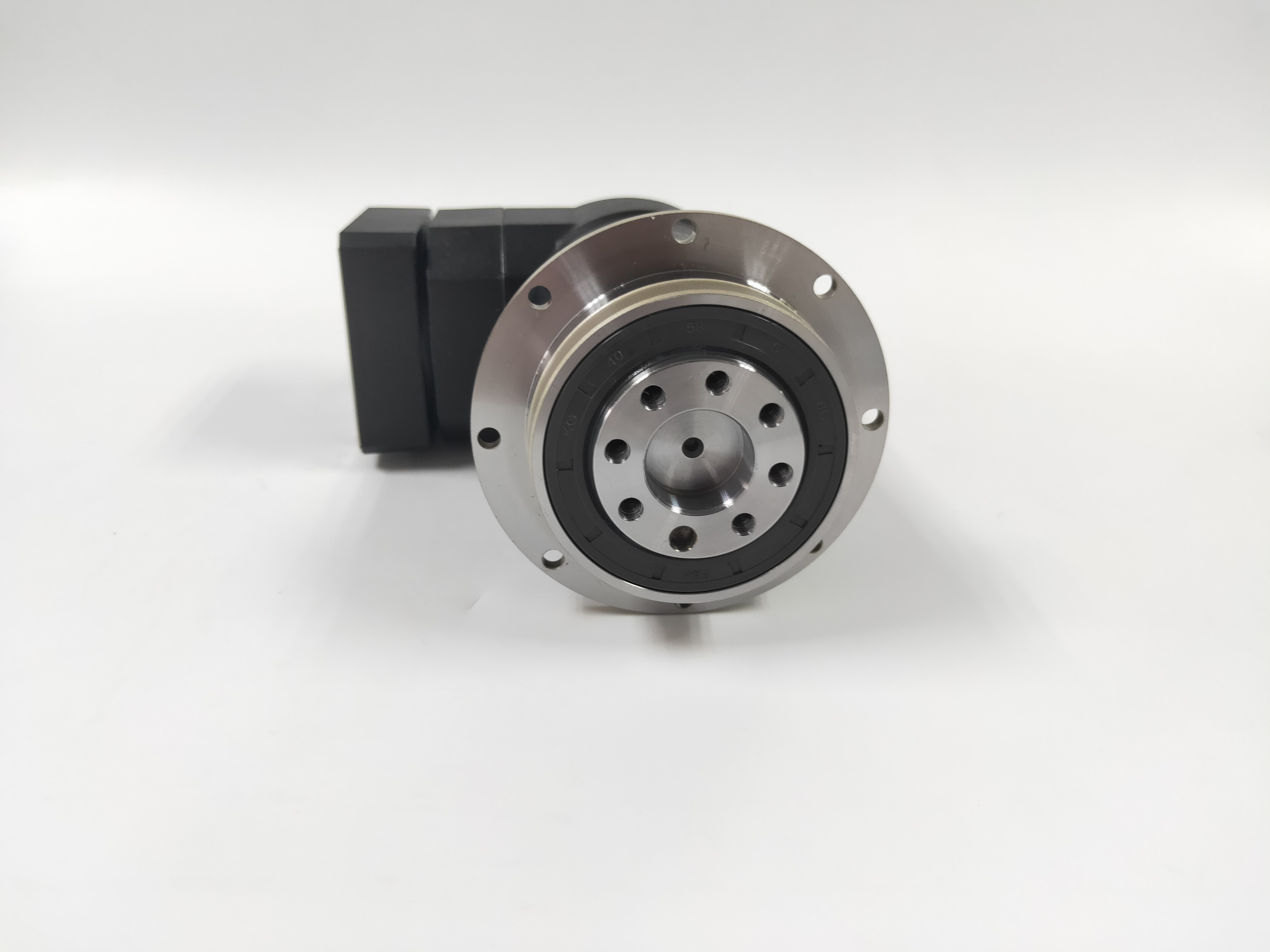

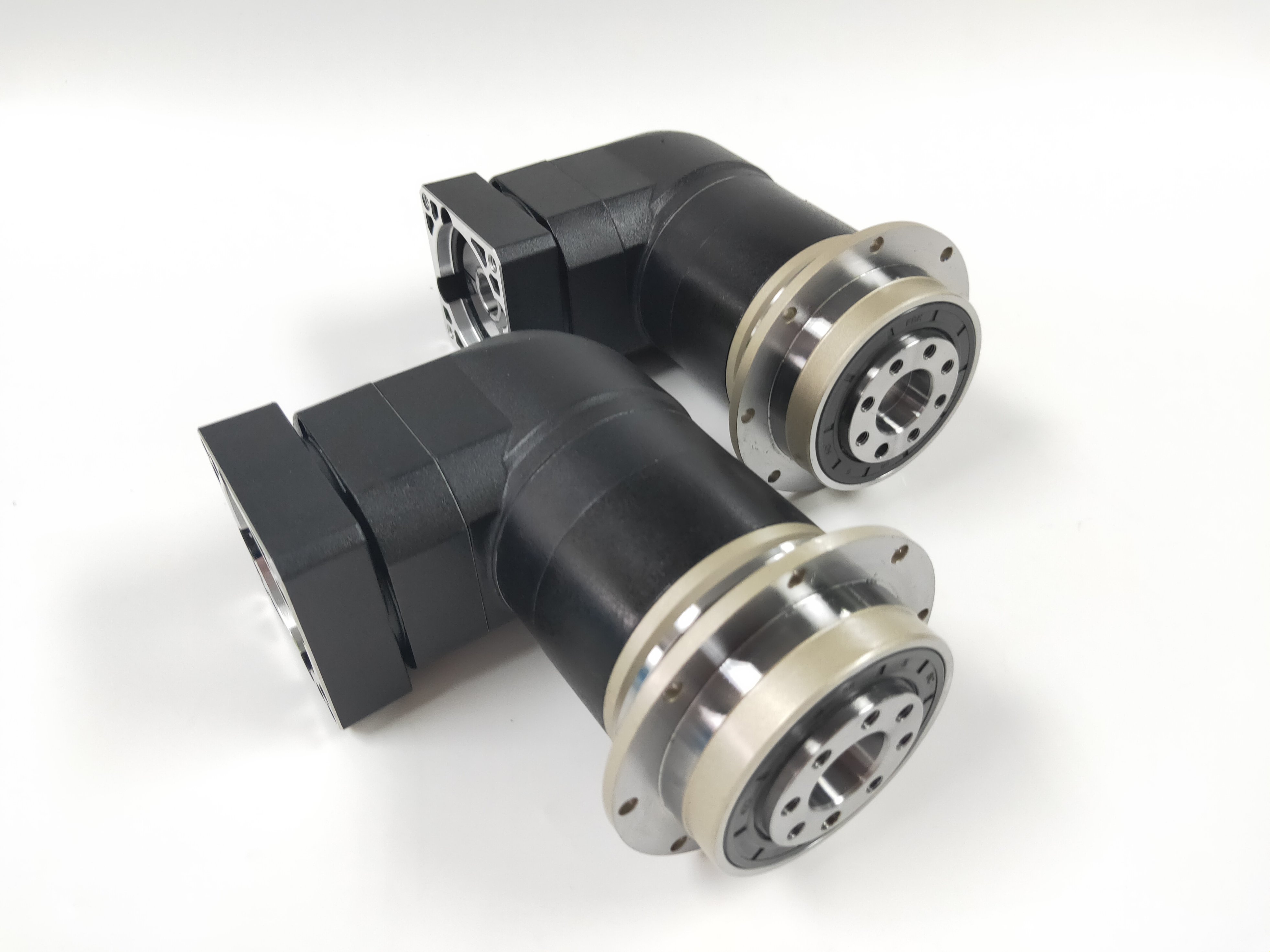

FAD Series High Precision Planetary Gearbox
Product Overview
The FAD Series High Precision Planetary Gearbox is designed for servo and stepper motor applications requiring compact structure, high torque density, and precise power transmission.
With a robust planetary gearing arrangement and flange-mounted design, the FAD series ensures stable performance, high efficiency, and reliable operation in demanding industrial environments.
Product Features
- Compact planetary gearbox design with high torque output
- Smooth and efficient power transmission with low vibration
- High rigidity housing suitable for precision motion control
- Flange-mounted configuration for easy installation
- Compatible with servo and stepper motors
- Optional motor integration available
Gearing Arrangement
- Planetary gear arrangement
- Optimized for high precision and durability

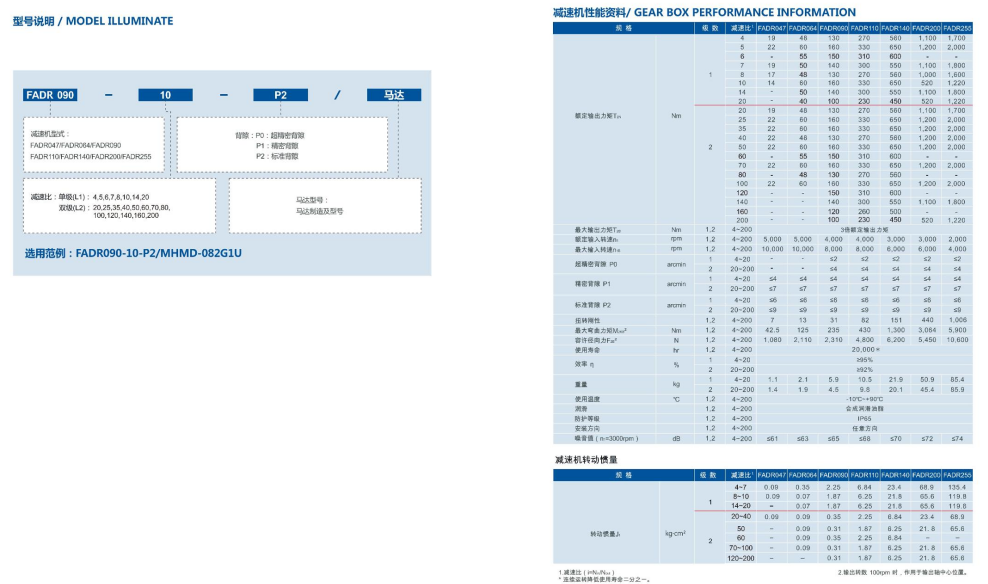

Technical Specifications
Parameter | Description |
|---|---|
Product Name | FAD High Precision Planetary Gearbox |
Model Numbers | FAD047 / FAD064 / FAD090 / FAD110 / FAD140 / FAD200 / FAD255 |
Gear Type | Planetary |
Gear Arrangement | Planetary Gearbox |
Rated Power | 0.06 – 15 kW |
Maximum Input Power | Up to 10 HP |
Input Speed | 2000 – 10000 RPM |
Output Speed | 5 – 5000 RPM |
Reduction Ratio | 3 – 100 |
Output Torque | Up to 6000 Nm |
Input Type | Servo / Stepper Motor (up to 4 kW) |
Output Type | Shaft Output |
Output Shaft Type | Flanged Shaft |
Mounting Orientation | Flange Mounted |
Structure | Planetary Gearbox + Motor (optional) |
Protection Level | IP65 |
Weight | Approx. 10 kg (model dependent) |
Customization Support | OEM, ODM |
Brand Name | Drivemotion |
Warranty | 1 Year |
Place of Origin | Sichuan, China |
Packing | Carton Box |
Sample | Available |
Selection Guide
To ensure optimal selection, please confirm:
- Motor type and power (servo or stepper motor)
- Required reduction ratio
- Output torque and load condition
- Input and output speed requirements
- Installation space and flange dimensions
Applications
- Garment manufacturing equipment
- Building material processing machinery
- General manufacturing automation systems
- Packaging and conveying equipment
- Precision motion control applications
Why Choose FAD Series?
- High precision planetary transmission
- Flange-mounted design for compact installations
- Wide ratio range and power compatibility
- IP65 protection for industrial environments
- Flexible configuration with optional motor integration
