High-precision planetary gearbox with compact design and robust construction. Offers high torque, low noise, and long service life. Ideal for automation, robotics, and precision machinery.

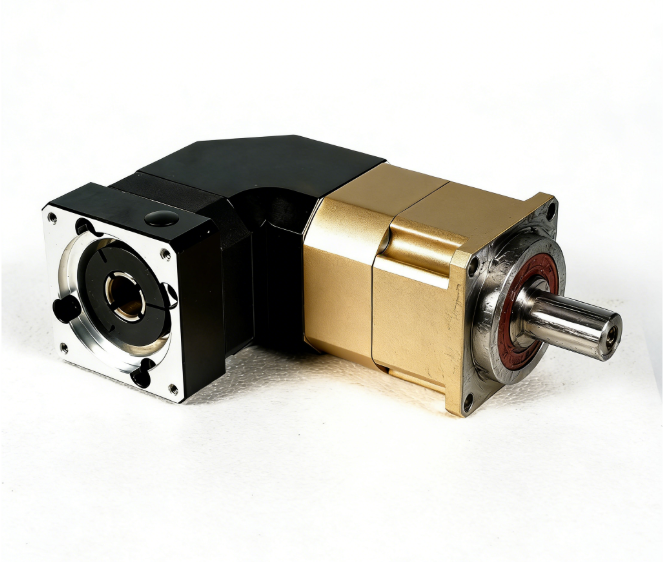

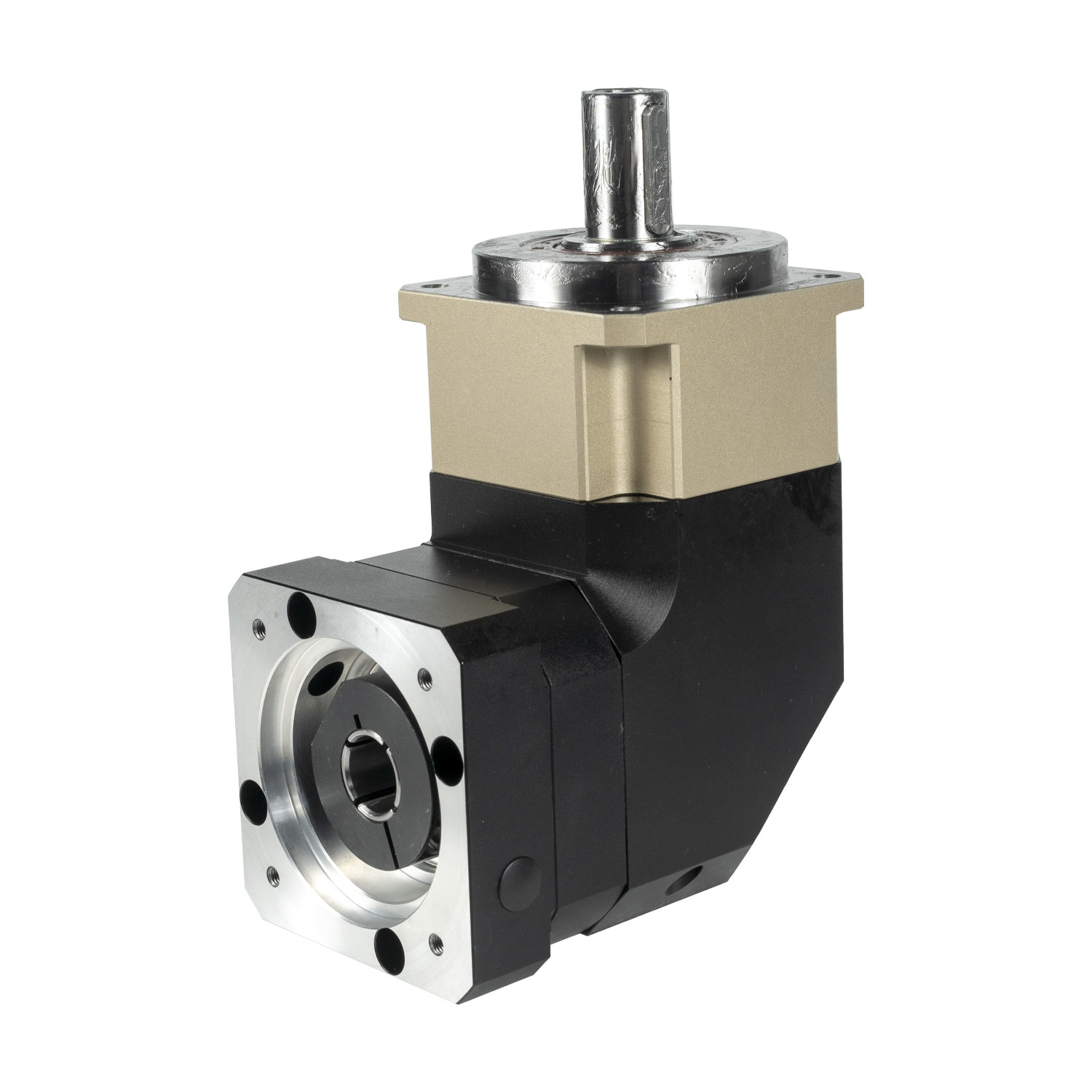

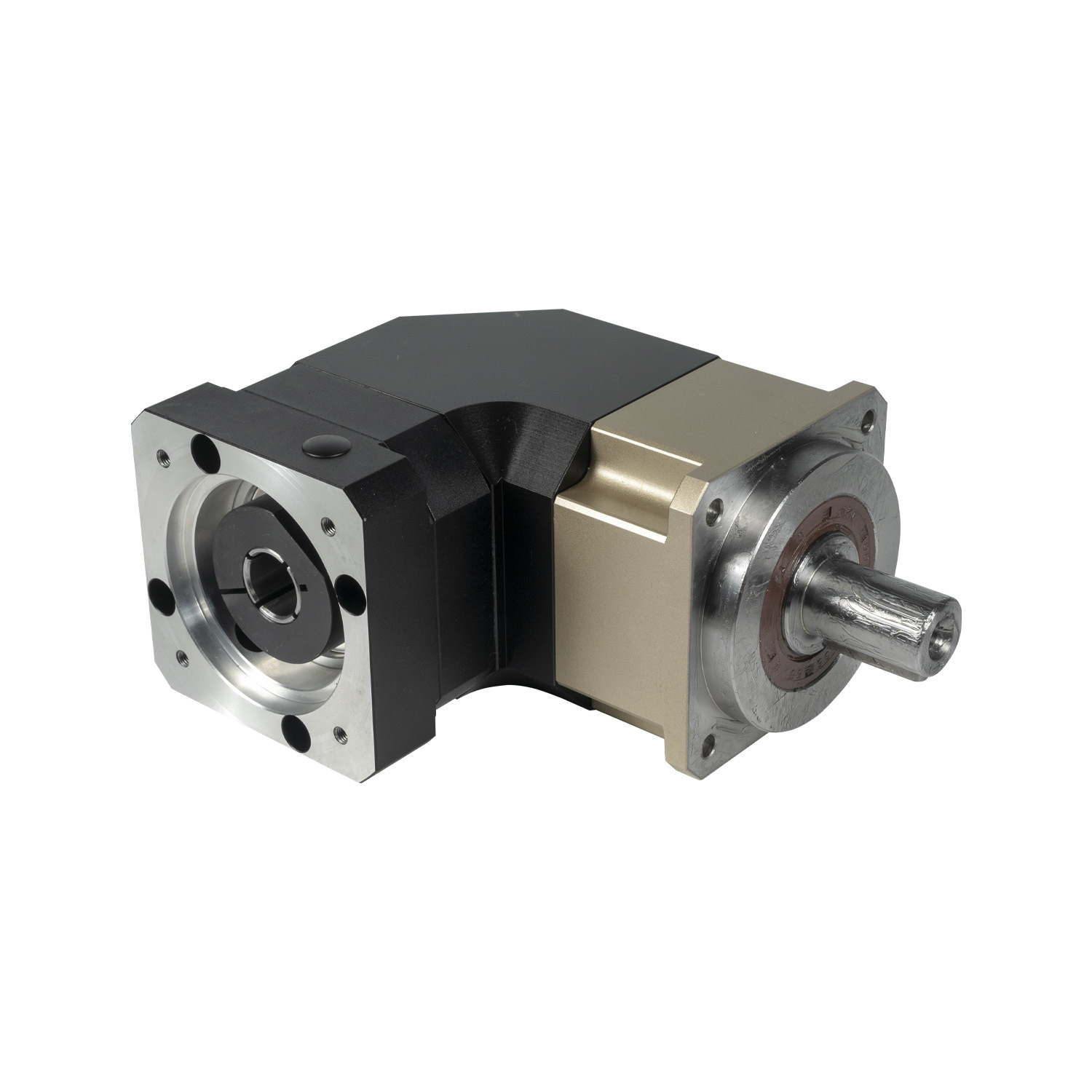

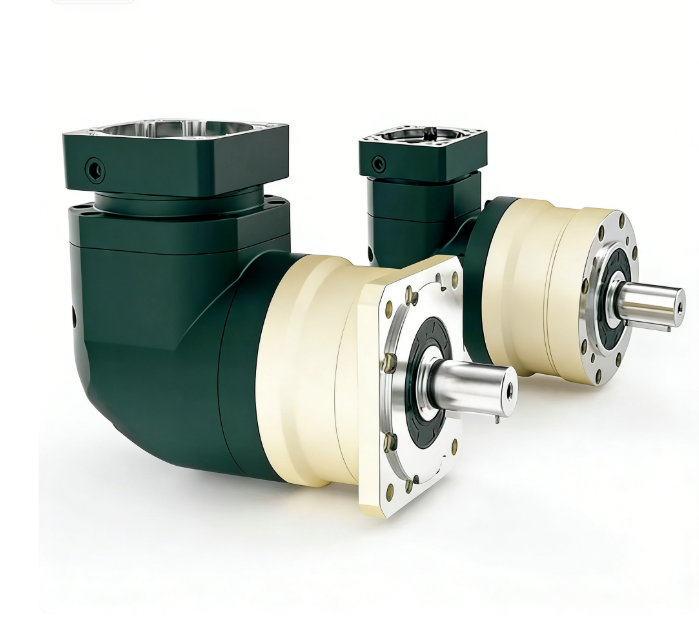

FABR Series High Precision Planetary Gearbox

Product Features

The FABR Series High Precision Planetary Gearbox is engineered for servo motor applications requiring high torque density, compact dimensions, and precise motion control. With a helical planetary gear arrangement and a rigid aluminum alloy housing, the FABR series delivers smooth transmission, low noise, and high efficiency. Its compact structure and precision-machined gears make it ideal for high-performance automation systems operating under continuous or dynamic load conditions.


Gearing Arrangement

  • Helical planetary gear arrangement
  • Optimized for high precision and smooth operation

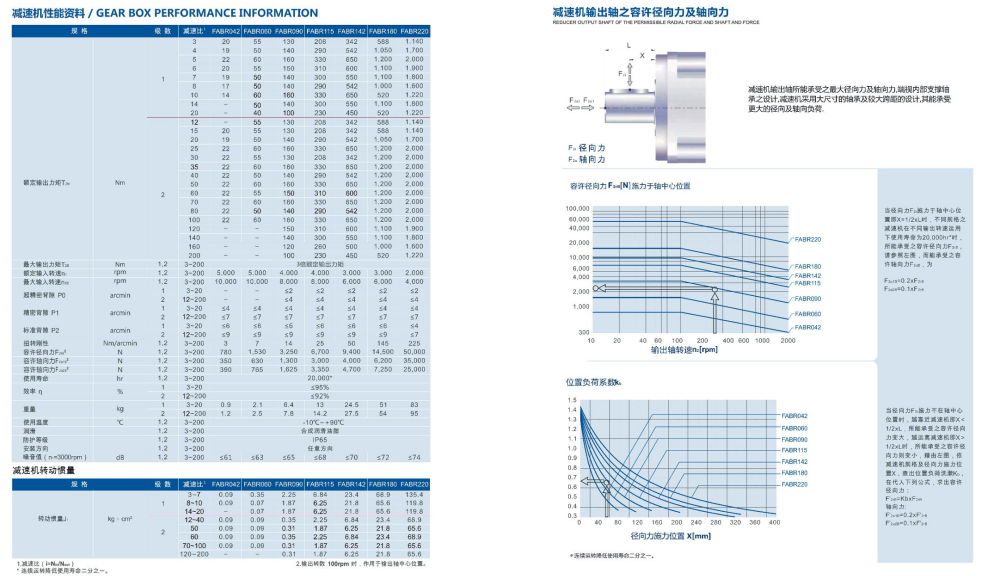

Technical Specifications

Parameter
Description
Product Name
FABR High Precision Planetary Gearbox
Model Numbers
FABR042 / FABR060 / FABR090 / FABR115 / FABR142 / FABR180 / FABR220
Gear Type
Helical Planetary
Gear Arrangement
Planetary Gear Arrangement
Housing Material
Aluminium Alloy
Gear Material
Alloy Steel
Rated Power
0.06 – 15 kW
Maximum Input Power
Up to 10 HP
Reduction Ratio
3 – 100
Input Speed
2000 – 10000 RPM
Output Speed
5 – 5000 RPM
Output Torque
Up to 6000 Nm
Input Type
Servo Motor
Output Shaft Type
Solid Shaft
Mounting Orientation
Angled
Customization Support
OEM, ODM
Warranty
1 Year
Brand Name
Drivemotion
Place of Origin
Sichuan, China


Selection Guide

For accurate model selection, please confirm:
  • Servo motor power and specifications
  • Required reduction ratio
  • Output torque and load characteristics
  • Input speed and target output speed
  • Installation orientation and space limitations


Applications

  • Industrial automation systems
  • Printing machinery
  • Food and beverage processing equipment
  • Packaging and conveying systems
  • Construction machinery
  • Energy and mining equipment


Key Advantages

  • Compact, high-strength aluminum housing
  • High torque output with low backlash design
  • Wide ratio range for flexible integration
  • Designed specifically for servo motor drives
  • Reliable performance in demanding industrial environments
