High-precision planetary gearbox with compact design and robust construction. Offers high torque, low noise, and long service life. Ideal for automation, robotics, and precision machinery.
Specifications
- Service Duration
- 4-8 months
- Service Content
- Current state analysis, solution design, implementation guidance
- Deliverables
- Optimization plan, process documentation, system configuration

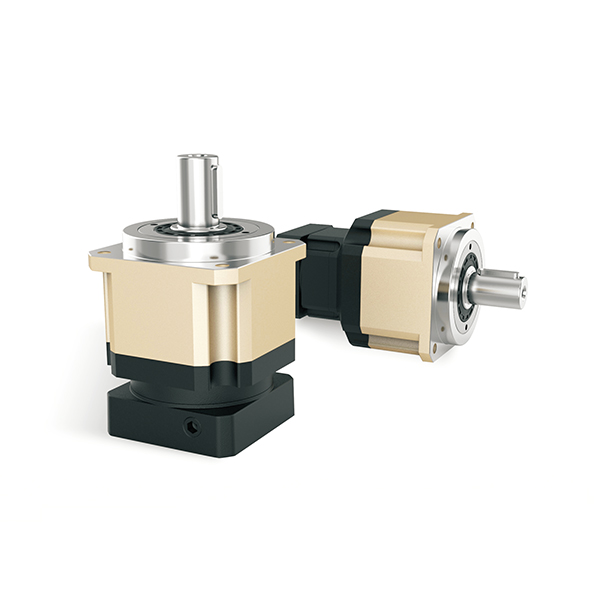

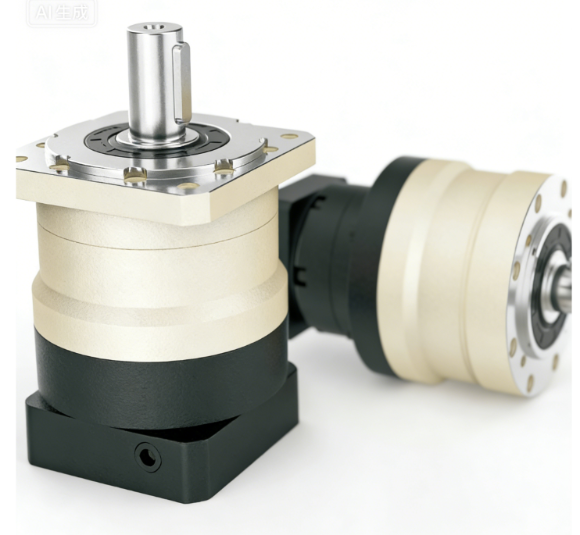

FAB Series High Precision Planetary Gearbox
Product Features
The FAB Series High Precision Planetary Gearbox is designed for servo-driven applications requiring high accuracy, compact structure, and reliable torque transmission.

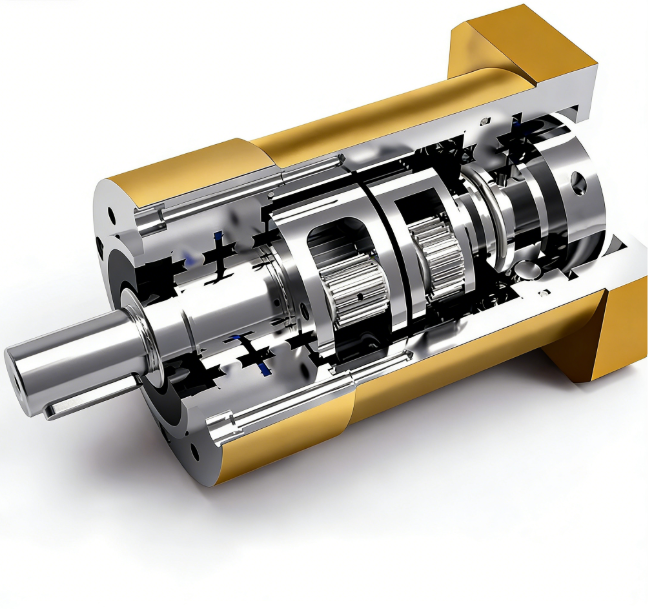

Featuring a helical planetary gear arrangement and an aluminum alloy housing, this gearbox delivers smooth operation, high efficiency, and excellent rigidity in a lightweight design.
Precision-machined alloy steel gears ensure low backlash, long service life, and stable performance under continuous operation.
Gearing Arrangement
- Planetary gear arrangement
- Helical gear design for low noise and smooth transmission
Technical Specifications
Parameter | Description |
|---|---|
Product Name | FAB High Precision Planetary Gearbox |
Model Numbers | FAB042 / FAB060 / FAB090 / FAB115 / FAB142 / FAB180 / FAB220 |
Gear Type | Helical Planetary |
Gear Material | Alloy Steel |
Housing Material | Aluminium Alloy |
Rated Power | 0.06 – 15 kW |
Maximum Input Power | Up to 10 HP |
Reduction Ratio | 3 – 100 |
Input Speed | 2000 – 10000 RPM |
Output Speed | 5 – 5000 RPM |
Output Torque | Up to 6000 Nm |
Input Type | Servo Motor |
Output Shaft Type | Solid Shaft |
Mounting Orientation | Angled |
Weight | Approx. 10 kg (model dependent) |
Customization Support | OEM, ODM |
Warranty | 1 Year |
Place of Origin | Sichuan, China |
Brand Name | Drivemotion |
Selection Guide
To select the correct FAB planetary gearbox, please confirm:
- Motor power and type (servo motor specifications)
- Required reduction ratio
- Output torque and load condition
- Input speed and desired output speed
- Installation orientation and space constraints
Applications
- Printing machinery
- Food and beverage processing equipment
- Packaging systems
- Construction machinery
- Energy and mining equipment
- Industrial automation systems
Why Choose FAB Series?
- Compact and lightweight aluminum housing
- High precision planetary transmission
- Wide ratio range for flexible system design
- Optimized for servo motor applications
- Suitable for demanding industrial environments
