F Series

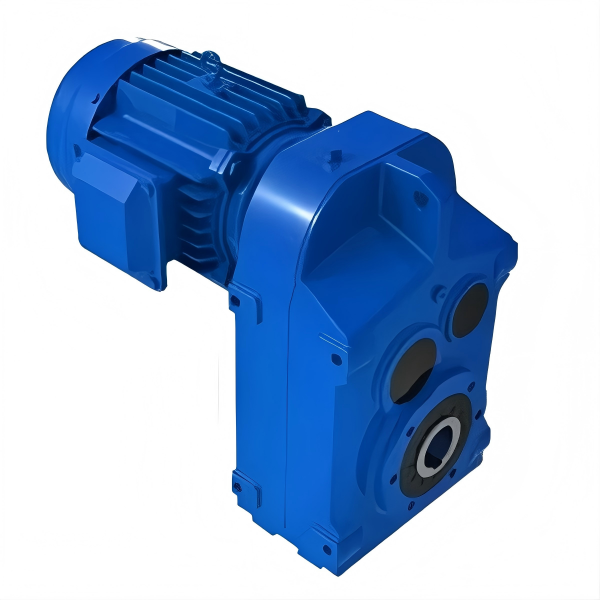

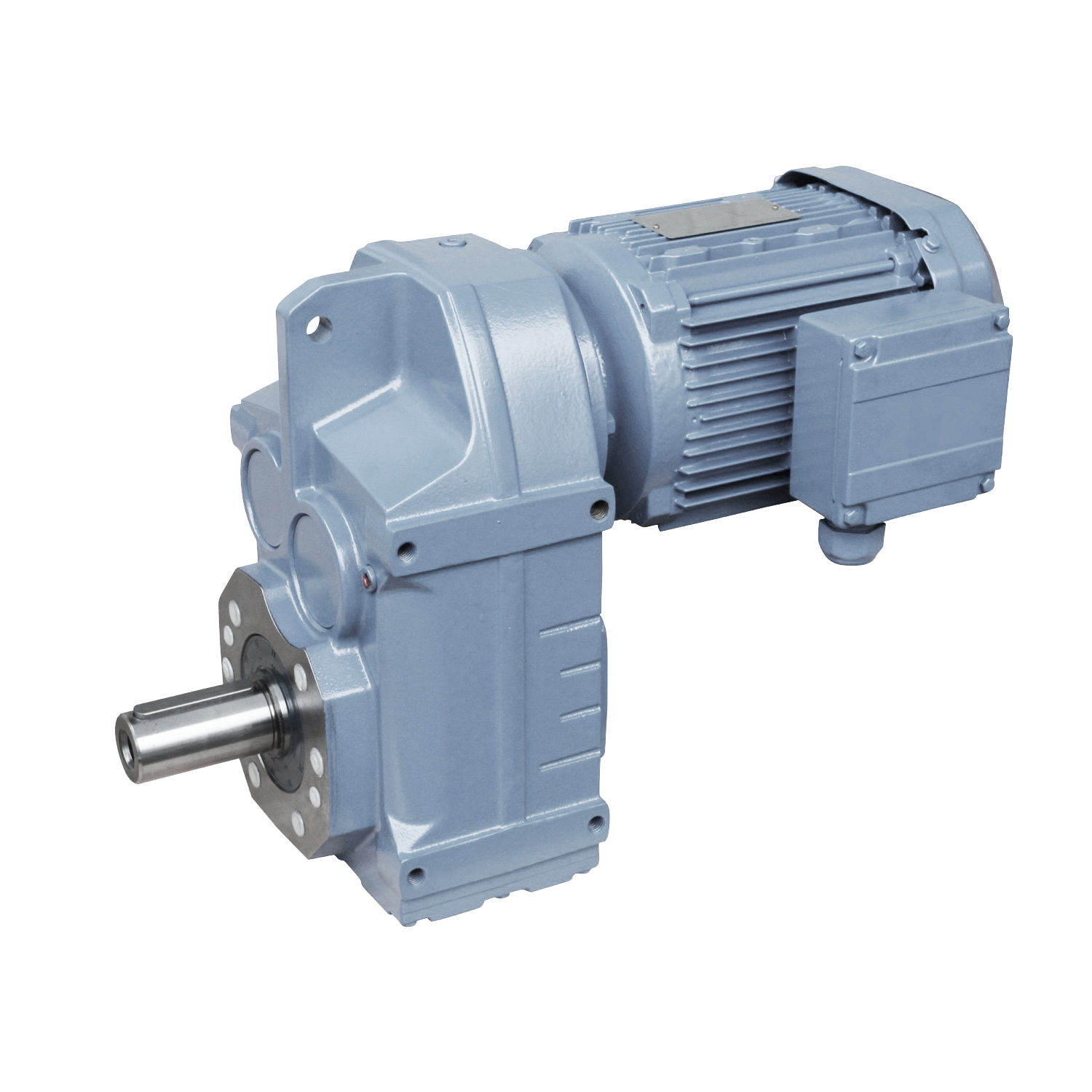

F Series Parallel Shaft Helical Gear Reducer
The F Series Parallel Shaft Helical Gear Reducer is a high-performance speed reducer designed for efficient parallel shaft power transmission. With precision-machined helical gears, it delivers smooth operation, high torque, and low noise, while maintaining a compact and robust design. It is widely used in conveyors, automation systems, packaging machinery, metallurgy, and other industrial applications.
F Series Parallel Shaft Helical Gear Reducer
Product Features
- High-strength cast iron housing with compact design and excellent rigidity
- Helical gear transmission ensures high efficiency, smooth operation, and low noise
- Gears made of alloy steel, carburized, quenched, and precision-ground for long service life
- High load-bearing capacity, suitable for continuous and heavy-duty operations
- Multiple mounting options for easy integration into various systems

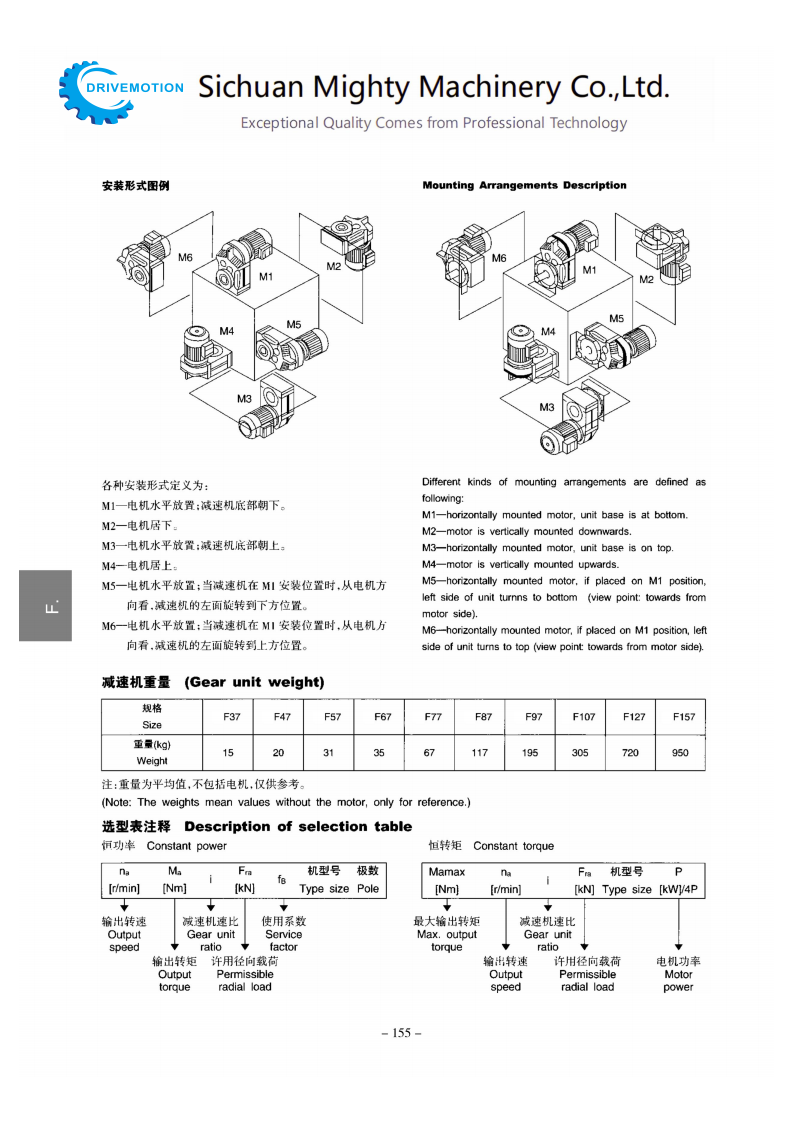

Mounting Types
- Foot-mounted

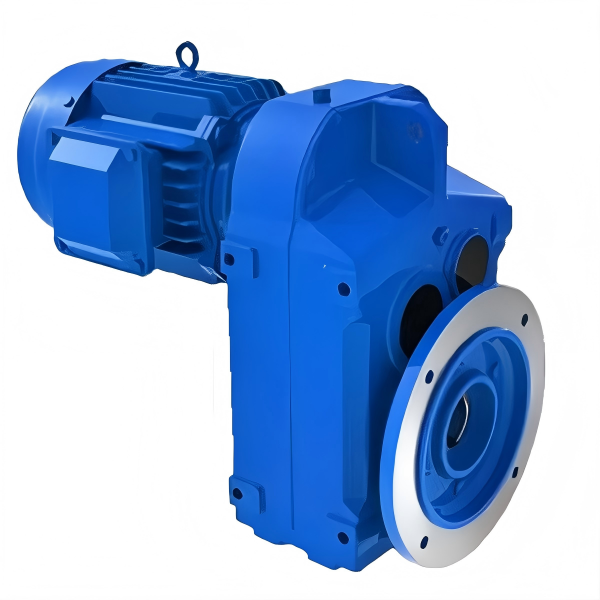

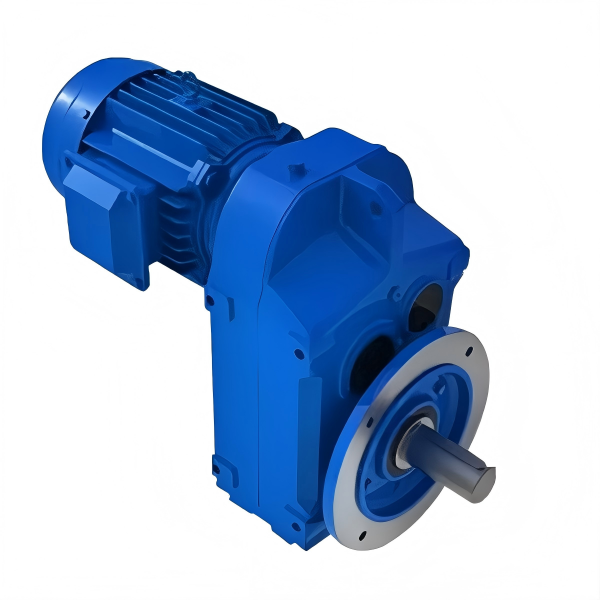

- Flange-mounted
- Hollow shaft or solid shaft
- Left-hand or right-hand output available

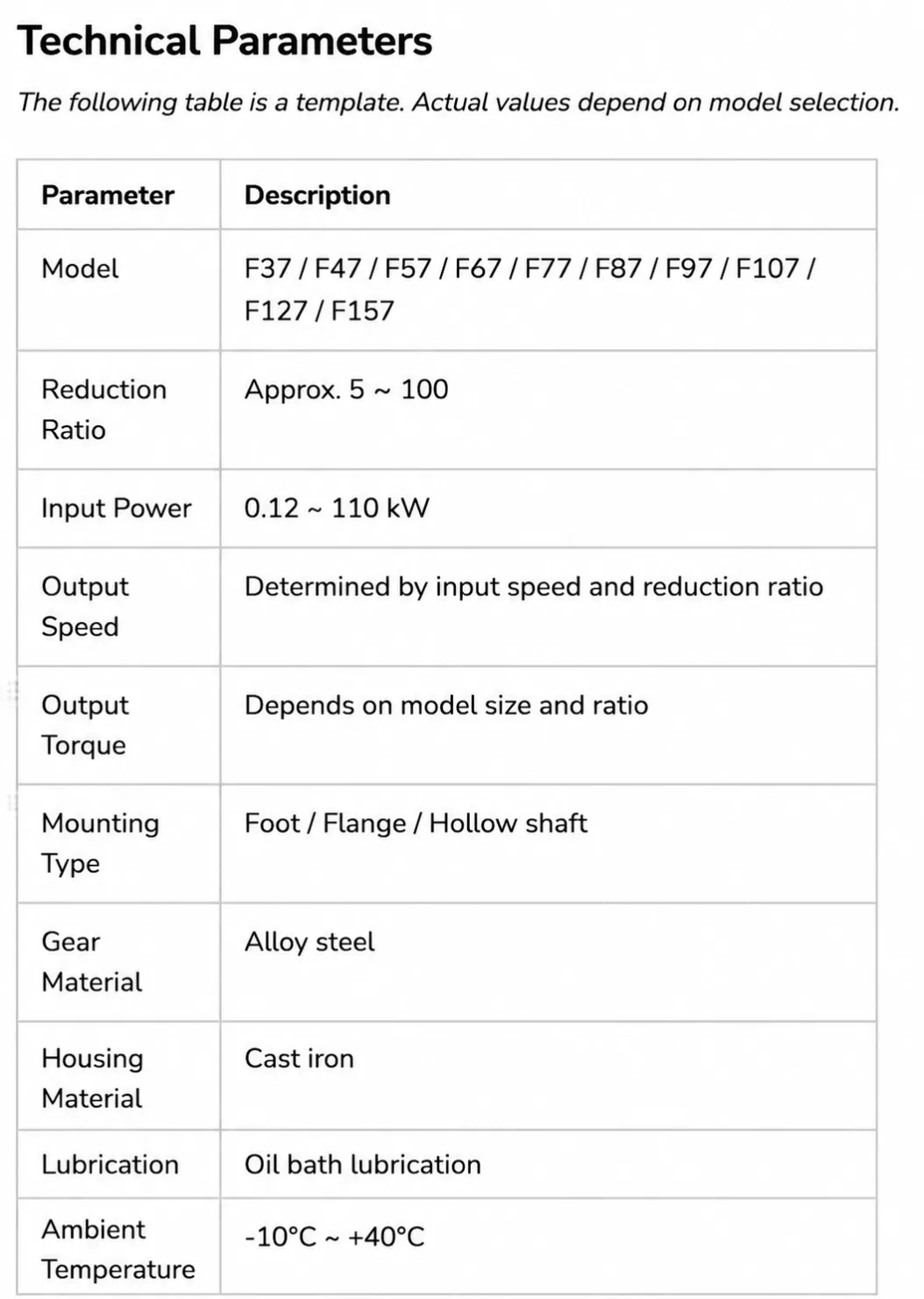

Technical Parameters
The following table is a template. Actual values depend on model selection.
Parameter | Description |
|---|---|
Model | F37 / F47 / F57 / F67 / F77 / F87 / F97 / F107 / F127 / F157 |
Reduction Ratio | Approx. 5 ~ 100 |
Input Power | 0.12 ~ 110 kW |
Output Speed | Determined by input speed and reduction ratio |
Output Torque | Depends on model size and ratio |
Mounting Type | Foot / Flange / Hollow shaft |
Gear Material | Alloy steel |
Housing Material | Cast iron |
Lubrication | Oil bath lubrication |
Ambient Temperature | -10°C ~ +40°C |
Selection Guide
To ensure correct selection, please provide:
- Motor power (kW)
- Required reduction ratio or output speed
- Output torque or load condition
- Mounting type and shaft configuration
- Working condition (continuous or shock load)
Applications
- Conveyor and material handling systems
- Automation production lines
- Packaging machinery
- Metallurgy and industrial equipment
