Center Reduction Motor
Center Reduction Motor

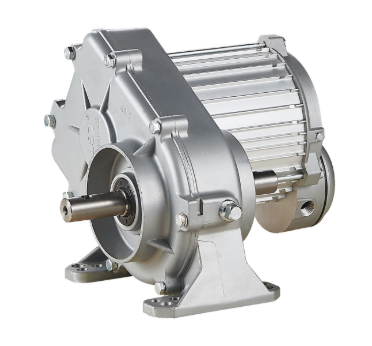

The Standard Drive-motion Power Saver is a high-performance helical center drive designed for use on center pivots and lateral / linear irrigation systems. It has several new features that set it apart from every other center drive in the industry.
Features and Benefits
- Cartridge output seals eliminate shaft grooving and reduce oil leaks
- Single bolt junction box cover makes installation and maintenance easier and faster
- 95% efficient helical gear reduction
- 6 gear ratio options (30:1, 40:1 and 50:1)
- Available with three 3-phase motor options
- CSA, CE, CCC and SASO certified motors
- IP 45 rated
- Aluminum finned stator for superior heat dissipation
- Internally vented junction box protects motor lead connections from moisture
- Magnet wire to motor lead connections covered with Teflon tubing and encapsulated with P.D. caps for superior moisture protection
- Class H wire and Class F insulation
- Thermally protected motor with automatic reset located in the junction box
- Multi-bolt mounting pattern fits (3 3/8″ x 6 3/8″), (4 3/4” x 7 1/4”) and (5″ x 6″) bolt patterns
- Top oil fill plug positioned to set the correct oil level
- Integrated crop guard for coupler shields to nest and protect oil seals from crop wrapping and debris
- Seals savers on output to protect oil seals
